R157003

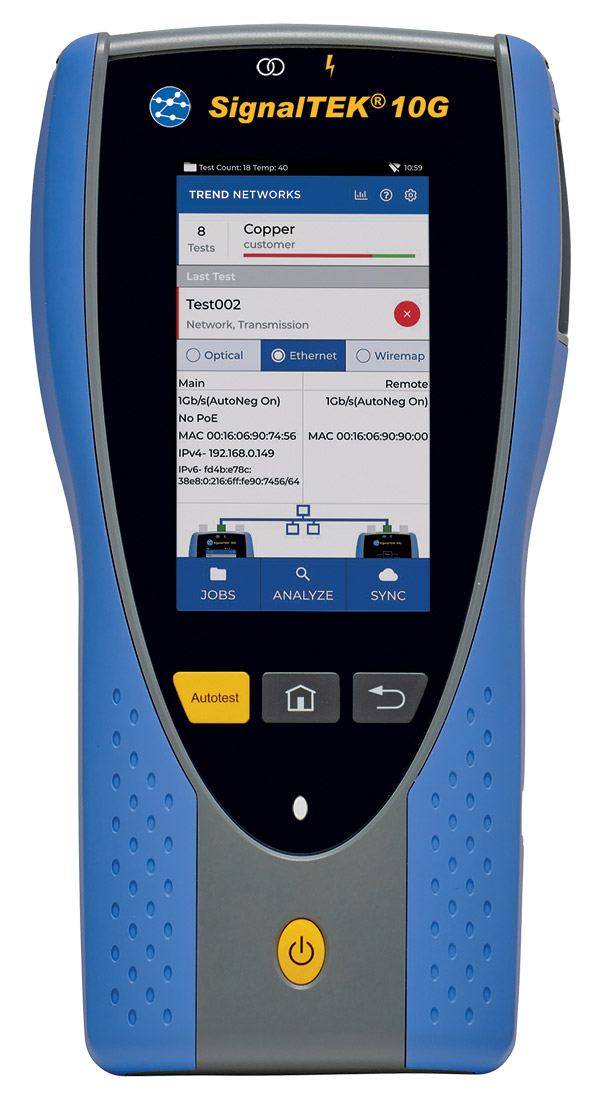

SignalTEK 10G – Ethernet Cable & Bandwidth Tester
R166001

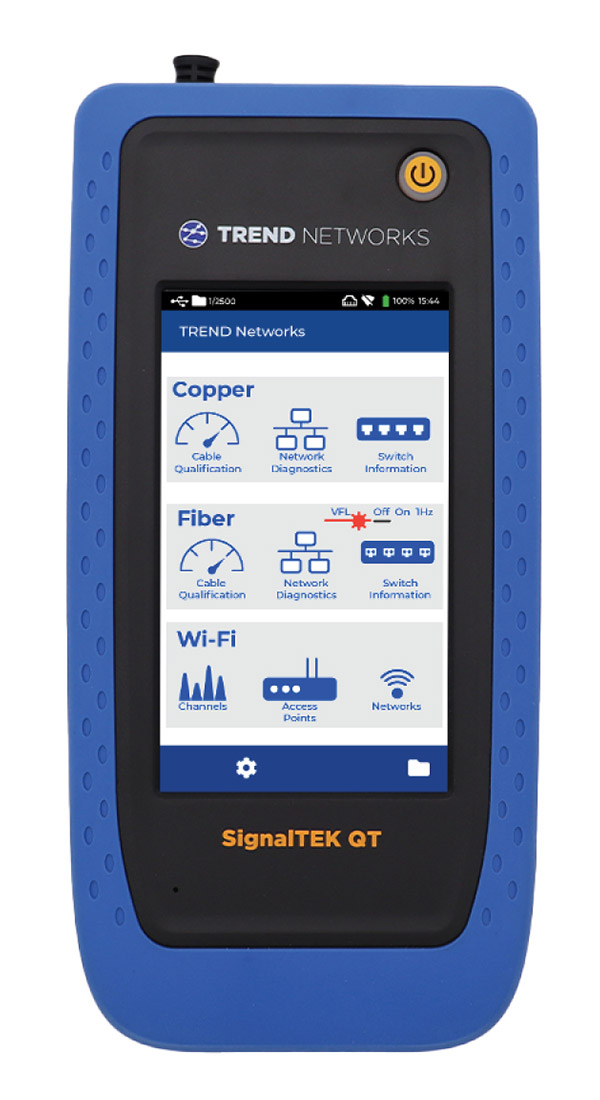

SignalTEK QT Pro – 10G Copper/Fibre/Wi-Fi Qualification Tester
R166002

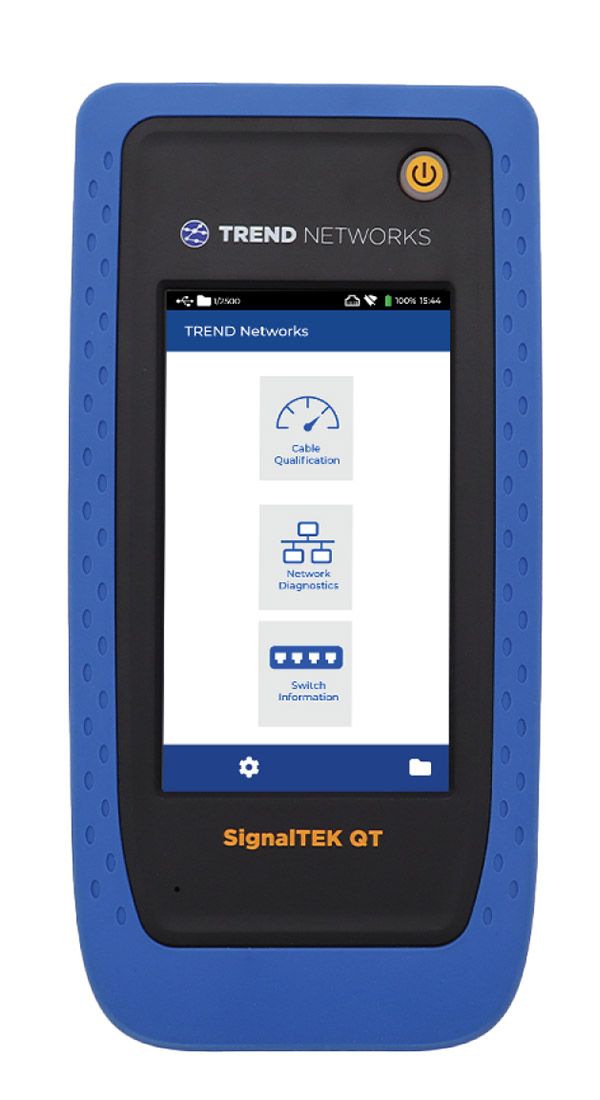

SignalTEK QT – 10G Copper Qualification Tester
Who should consider this
Campus Network, Data Centre and IP Smart building integration teams. Where commission testing with Proof of bandwidth 1, 2.5, 5, 10G across the complete link copper to fibre and through switches
All Commercial Network technicians working with 1G, 2.5G, 5G, 10G and Wi-Fi connectivity
Cable maintenance installation teams where 1 to 10G proof of performance is accepted
Capabilities
Copper/Fibre/PoE
Copper/Fibre/Wi-Fi/PoE
Copper (only)
Test performance method
Network & Cable Qualification applying 1 - 10G IEEE.802.3 Bi-Directional Packet loss measurement
Network Verification & Cable Qualification to 10G using RF testing similar to Certification tests
Cable Qualification to 10G using RF testing similar to Certification tests
Cable verification with trouble shooting
Yes
Yes
Yes
Network Speed Verification: (copper) RJ45
10/100M, 2.5/5/10G
10/100M, 2.5/5/10G
10/100M, 2.5/5/10G
Network Speed Verification: (Fibre)
10G
10G
Reporting creation Cloud Ready or Via APP
TREND AnyWARE Cloud ready full capabilities + Remote Control
TREND AnyWARE Cloud ready full capabilities + Remote Control
TREND AnyWARE Cloud ready full capabilities + Remote Control
Active Network commission testing
(Ethernet load testing through switches to IEEE802.3 to determine full link capabilities)
10G, 5, 2.5 to 1G IEEE802.3 Ethernet Bi-Directional tests through switches Determine full link capability
Copper Testing
CDP / LLDP
CDP / LLDP
CDP / LLDP
Switch Name / MAC / Port number
Switch Name / MAC / Port number
Switch Name / MAC / Port number
VLAN Name / Number
VLAN Name / Number
VLAN Name / Number
Port Blink
Port Blink
Port Blink
Ping Test
Ping Test
Ping Test
Ping Response Time Graph
Ping Response Time Graph
Ping Response Time Graph
Traceroute Test
Traceroute Test
Traceroute Test
Network Device Discovery (Netscan)
Network Device Discovery (Netscan)
Network Device Discovery (Netscan)
Max Available Network Throughput Test
Network % Availability (uptime) Test
Fibre Testing
Fibre Attenuation (dB Loss)
Fibre Attenuation (dB Loss)
Fibre Length: Estimate when using TREND SFPs
Fibre Length: Estimate when using TREND SFPs
Visual Fault Locator
Optional Fibre Inspection scope
CDP / LLDP
CDP/LLDP
Switch Name / MAC / Port number
Switch Name/MAC/ Port number
VLAN Name / Number
VLAN Name/Number
Ping Test
Ping Test
Ping Response Time Graph
Traceroute Test
Traceroute Test
Network Device Discovery (Netscan)
Network Device Discovery (Netscan) - Number of devices and device information
Max Available Network Throughput Test
Network % Availability (uptime) Test
Wi-Fi Testing
Wi-Fi Bands Supported: 2.4/5GHz
Wi-Fi Bands Supported: 2.4/5GHz, 6GHz w/ accessory
Signal Strength
Channel Utilization
Tx/Rx Rates
Number devices / Aps on network / (Netsan for devices)
Ping Test
Ping Response Time Graph
Traceroute Test
AP List
SSID List
SSID List
BSSID List
Number of APs on same channel
Channel Bandwidth
Wi-Fi Bands available on AP
Channels available on Wi-Fi Band
Channel Overlap View
Security Status
Signal Strength, Tx/Rx Rate Histogram
Locate Wi-Fi Access Points (with optional External Antenna)
PoE Testing
Capable PoE IEEE 802.3 BT Classes 0-8
Capable PoE IEEE 802.3 BT Classes 0- 8
Capable PoE IEEE 802.3 BT Classes 0- 8
POE Load test
POE Load test
POE Load test
Up to 90 watts available power
Up to 90 watts available power
Up to 90 watts available power
Hardware Negotiated PoE Class
Hardware Negotiated PoE Class
Hardware Negotiated PoE Class
Minimum Required PoE Voltage
Minimum Required PoE Voltage
Minimum Required PoE Voltage
Powered Pairs
Powered Pairs
Powered Pairs
