Fibre Optic Links

One analogue plus up to four digital channels or up to 16 digital channels

DC to 25 MHz analogue bandwidth

Input ranges of ± 1 V and ± 5 V or ± 2 V and ± 10 V

Analogue signal digitized to 12 or 14 bit precision

DC to 48 Mb/s data rate (each channel)

The LTX-7225 Transceiver converts up to 16 independent channels of digital information, bidirectionally over a single optical fibre, up to 10 km.

The LTX-7215 Transceiver converts one analogue and up to four independent digital channels of information, bidirectionally over a single optical fibre, up to 10 km.

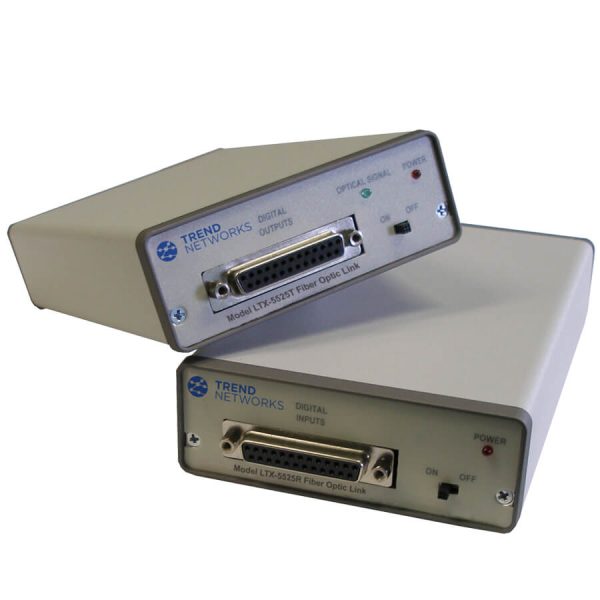

The LTX5525 Fibre Optic Link transmits up to 16 independent digital channels over a single fibre, to 10 kilometers.

The LTX5515 Fibre Optic Link transmits 1 analogue and up to four independent digital channels over a single fibre, to 10 kilometers.

LTX-5515 and LTX5525 models are available in multi-mode or single-mode versions depending on the transmission distance required. The LTX7225 and LTX7215 are available in SM configurations only. 850nm models transmit over multi-mode fibre optic links of up to 250 meters in length, while the SM versions transmit at 1310nm over single-mode fibre to span distances that can exceed 10 km.
