LANTEK IV-S – CABLE CERTIFIER
THE MOST POWERFUL AND FASTEST COPPER & FIBRE DATA CABLE CERTIFIER WE’VE EVER MADE
- 7 second test time
- World’s fastest Cloud enabled certifier
- VisiLINQ™ permanent link adapters
- Project navigation in the Cloud
- Twice the CPU power as LanTEK IV
- Sapphire Care Plan available
$13,310 - $17,375 MSRP
Free Shipping Overview
LANTEK IV-S – DATA CABLE CERTIFIER
The LanTEK IV-S cable certifier brings a new standard to the industry, saving you time and improving profitability. It’s time to change the way you certify.
A copper and fiber cable certifier, it will test and save a Cat6A link in 7 seconds and certifies links up to Cat8.1 and Cat8.2, including TCL and Resistance Unbalance measurements. Plus, LanTEK IV-S future-proofs your investment – it will sweep to 3000MHz providing room for future ISO/TIA test standards.
Twice the CPU processing power.
Now dual-core instead of single-core.
Twice as much RAM.
Provides a faster user experience.
Twice the test memory.
Now stores 5,000 tests vs 2,500 previously.
New 3.0 Software/Operating System.
Offering our fastest user experience yet.
Fastest Cloud test management software in the world.
Uploading tests / generating reports is even faster.
Complete Protection for your LanTEK IV-S
The Sapphire Care Plan reduces cost of ownership, minimises downtime and protects against unforeseen repair bills, helping increase your cash flow and providing the support you need.
Cable Certifier Bundles
We have also created a series of product bundles with our most popular accessories and applied a generous discount to the bundled offering. Click here for more details.
Trade-in your tester today for a new SignalTEK 10G and save up to $2,000 CDN. Click here.
Do you have a LanTEK IV? Schedule your LanTEK IV-S upgrade now. Click here
Product features
WORK SMARTER NOT HARDER WITH THE UNIQUE VISILINQ™ PERMANENT LINK ADAPTER
VisiLINQ™ enables Field Technicians to initiate testing and view the results all without the need to carry or touch the certifier. Just press the VisiLINQ test button to start testing.
FIELD REPLACEABLE PERMANENT LINK ADAPTER TIPS
The RJ45 tip on the VisiLINQ™ Permanent Link Modules are field replaceable to reduce the cost of ownership, independently verified for 2,000 insertions which is 1,250 more than regular patch cord plugs rated to ISO/TIA standards.
TEAM VIEWER LIVE SUPPORT
Project Managers can connect to a LanTEK IV-S on the jobsite using the TREND AnyWARE Cloud to troubleshoot failed links therefore minimizing troubleshooting time, increasing collaboration and reducing call-backs.
Access can be granted to cable manufacturers and TREND Networks Technical Support to allow further troubleshooting if required.
KEY FEATURES
TEST MANAGEMENT SOFTWARE
The TREND AnyWARE Cloud management system allows real time collaboration between Project Managers and Field Technicians. There is no need for Field Technicians to setup the LanTEK IV-S, Project Managers pre-configure the jobs and tests in the TREND AnyWARE Cloud, eliminating potential mistakes and compressing the time taken to prepare reports for customers and warranties.
CLOUD SOFTWARE
- Operates anywhere with a web browser – TREND AnyWARE Cloud operates on a PC, Mac and tablet devices (Android and iOS)
- Free storage – No need for separate servers or backup systems.
- Easy to find project files – Attach all project files including cable layout drawings, videos, and photos into the TREND AnyWARE Cloud. •Everything you need in one place.
- Share reports easier – Use TREND AnyWARE Cloud to share links to the test reports eliminating the need to manually email large attachments.
- Reduce training time with WalkMe – TREND AnyWARE Cloud is embedded with the WalkMe digital adoption platform providing proactive, step-by-step guidance on all key tasks.
FLEET MANAGEMENT
Easily manage the certifier fleet – Fleet manager allows you to see who has the certifier, when the software was last updated, calibration due date and when the results were last synced. Allowing you to manage tester downtime and ensuring results are transferred back to the office and not lost or deleted.
PRE-CONFIGURATION
Reduce setup errors – Project Managers pre-configure all project information in the TREND AnyWARE Cloud and Field Technicians simply download the project to the LanTEK IV-S eliminating any mistakes from manual data entry.
Create the most complex test ids – Easily create simple or sophisticated naming conventions required by the client.
TROUBLESHOOTING
Advanced filtering – filter tests on any field to reduce the time spent searching.
SUPPORT
Reduce training time – The TREND AnyWARE Cloud comes with proactive, step-by-step guidance for all the key features.
Team Viewer Live Support – Using the TREND AnyWARE Cloud users can connect to a LanTEK IV-S remotely to troubleshoot failed links, minimizing troubleshooting time, increasing collaboration and reducing call-backs.
PROFESSIONAL REPORTS
3 Report Formats
- Standard report – The Standard report combines the Single line and Brief report.
- Single line report – This is a summary report showing multiple tests per page.
- Brief report – This is a comprehensive report with all the measurement results with one page per test.
Click here to see TREND AnyWARE Cloud Certification Sample Reports for: Copper, Fiber and Copper and Fiber.
Product models
LanTEK IV-S 3000MHz (with PL/CH adapters)
R163009 - LanTEK IV-S 3000MHz Cable Certifier...
$17,375 MSRP
LanTEK IV-S 500MHz (with PL/CH adapters)
R163008 - LanTEK IV-S 500MHz Cable Certifier...
$15,910 MSRP
LanTEK IV-S 500MHz -TRADE IN (with PL/CH adapters)
TRADE163008 - LanTEK IV-S 500MHz -TRADE IN...
$13,310 MSRP
LanTEK IV-S 3000MHz -TRADE IN (with PL/CH adapters)
TRADE163009 - LanTEK IV-S 3000MHz-TRADE IN...
$14,775 MSRP
Accessories

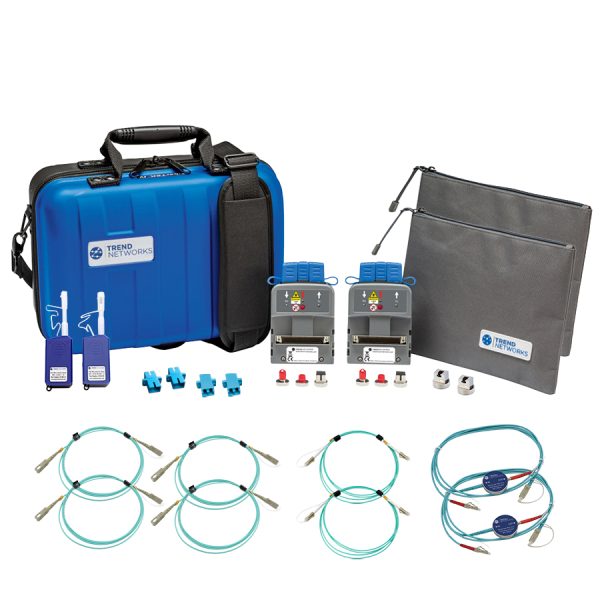

FIBERTEK IV-MM LED KIT
R164008 - FiberTEK® IV multimode (850/1300nm) kit with LED light sources for standard multimode fibre.
$7,680 MSRP
FIBERTEK IV-SM LASER KIT
R164009 - FiberTEK IV single mode (1310/1550nm) kit with laser light sources for single mode fibre.
$9,410 MSRP
FIBERTEK IV-MM LED & SM LASER KIT
R164010 - FiberTEK IV combination MM/SM kit with LED MM sources and laser SM sources.
$13,995 MSRP
LT IV-CAT6A RJ45 VisiLINQ PL adapter (Single)
R163050 - LT IV-CAT6A RJ45 VisiLINQ PL adapter (Single)
$875 MSRP
LT IV-CAT8.1 RJ45 VisiLINQ PL adapter (Single)
R163051 - LT IV-CAT8.1 RJ45 VisiLINQ PL adapter (Single)
$1,125 MSRP
LT II/III/IV-Carrying Case (Single)
R163060 - LT II/III/IV-Carrying Case (Single)
$385 MSRP
LT IV-CAT6A/6/5e RJ45 Channel Adaptor (Single)
R163052 - LanTEK IV High Performance Channel Adapter
$345 MSRP
LT IV-Cat8.1/6A/6/5e RJ45 Channel Adapter (Single)
R163053 - LT IV-Cat8.1/6A/6/5e RJ45 Channel Adapter (Single)
$445 MSRP
LT IV-Cat8.2 TERA Universal Adapter (Single)
R163054 - TERA Universal Adapter for 1 GHz (Single)
$345 MSRP
LT IV-Cat8.2 GG45 Universal Adapter (Single)
R163056 - LT IV-Cat8.2 GG45 Universal Adapter (Single)
$380 MSRP
LT IV-Cat8.2 EC7 Universal Adapter (Single)
R163055 - LT IV-Cat8.2 EC7 Universal Adapter (Single)
$450 MSRP
LT IV-Cat6 / Class E Patch Cord / MPTL Test Adapter (Single)
R163058 - LT IV-Cat6 / Class E Patch Cord / MPTL Test Adapter (Single)
$1,015 MSRP
LT IV-Cat6A / Class Ea Patch Cord / MPTL Test Adapter (Single)
R163059 - LT IV-Cat6A / Class Ea Patch Cord / MPTL Test Adapter (Single)
$1,015 MSRP
LT III/IV-CAT6A/8 PLA Replacement Tips (Pair)
R161050 - LanTEK III/IV Replacement Tips
$130 MSRP
LT II/III/IV-Battery Pack (Single)
R161058 - LT II/III/IV-Battery Pack (Single)
$425 MSRP
Sapphire Care Plan 1 Year
SCP1YR - Free repairs, free calibration, free loan unit, free shipping and free accessories.
$1,560 MSRP
Sapphire Care Plan 2 Years
SCP2YR - Free repairs, free calibration, free loan unit, free shipping and free accessories.
$2,870 MSRP
Sapphire Care Plan - Fiber (Per Pair) - 3 Years
SCP3YF - Free repairs, free calibration, free loan unit, free shipping and free accessories.
$3,045 MSRP
Sapphire Care Plan 1 Year - 10% Discount
SCP1YRN - (1 year - 10% discount included when purchased within 60 days of purchasing a new LanTEK III/IV)
$1,405 MSRP
Sapphire Care Plan 2 Years - 10% Discount
SCP2YRN - (2 year - 10% discount included when purchased within 60 days of purchasing a new LanTEK III/IV)
$2,585 MSRP
Sapphire Care Plan 3 Years - 10% Discount
SCP3YRN - (3 year - 10% discount included when purchased within 60 days of purchasing a new LanTEK III/IV)
$3,785 MSRP
Upgrade from LanTEK IV to LanTEK IV-S
UPGRADELTIV-S - Upgrade from LanTEK IV to LanTEK IV-S
$870 MSRP
LT IV-COAX Adapter (Single) 50/75 OHM
R163063 - Coax Adapter with F connector and F-BNC adapter. Requires LT IV/IV-S 3000 MHz model.
$470 MSRP
Videos
Manuals, Software, Brochures, Approvals
Download and view the latest manuals, quick reference guides, firmware and software updates, and approvals. Registration is required.
Sapphire care plan
COMPLETE PROTECTION FOR YOUR LANTEK® CABLE CERTIFIER
The new Sapphire Care Plan for LanTEK® cable certifiers is designed to help minimise down time, reduce the cost of ownership and protect against unforeseen repair bills.
Frequently Asked Questions
- Q: Can I test end-to-end links and device-links with LanTEK IV-S?A: Yes, both with LanTEK III and LanTEK IV-S.
- Q: How many tests can I run with a set of PL tips?A: According to standards, an RJ45 plug must withstand 750 insertions which is achievable for a quality patch cord. The tips of the LanTEK IV-S PL adapters are designed to withstand at least 2000 insertions under normal circumstances.
- Q: How often do I need to replace the PL adapters itself?A: TREND uses a high quality and very durable but still lightweight cable. Under normal use, this part does not need to be replaced during the lifetime of the product.
- Q: Channel adapters are sold as single pieces, PL tips are sold as pairs – why?A: When using channel adapters, it may happen that only one adapter gets damaged by a faulty patch cord. Therefore it makes sense to only offer single adapters. However, PL tips will only suffer wear due to a large number of insertions which most likely will always happen on both adapters , therefore both tips most likely will wear out same time. Therefore offering the tips as pairs makes more sense.
- Q: Does LanTEK IV-S have any troubleshooting functions?A: Yes. First of all, LanTEK IV-S features a wiremap with distance to fault to locate severe faults. Secondly LanTEK IV-S offers TDX and TDRL to locate crosstalk and return loss faults along the link. This enables users to locate even small issues.
- Q: Is the LanTEK IV-S troubleshooting able to locate shorts between a pin and the shield of shielded cables?A: Yes. First of all, the wiremap distance to fault indicates the approximate location of a shield. Secondly, a short between a pin and shield causes a huge return loss fault. The location of this fault can be accurately displayed by the TDRL feature.
- Q: At consolidation point links, is LanTEK IV-S able to distinguish if a crosstalk error stems from the jack at the end of the link or from the consolidation point?A: Yes. With the TDX feature, the user can see where there is a crosstalk problem along the cable. If the consolidation point contributes too much crosstalk, it will be visible in TDX. The user than can disconnect the extension from the consolidation point and re-test the link to verify if the link than meets specs or not.
